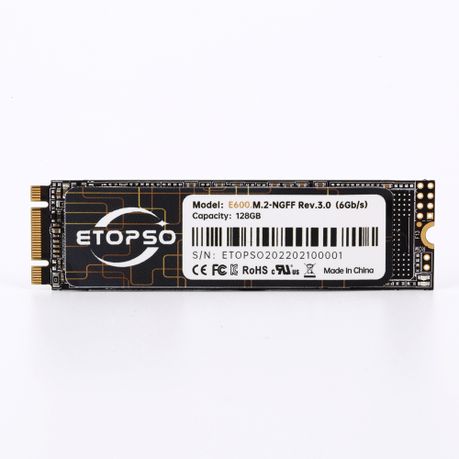

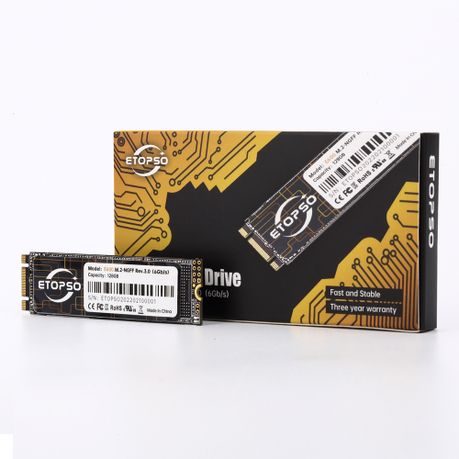

ETOPSO E600 128GB M.2 NGFF 2280 SSD Solid State Drive

ETOPSO E600 SSDs are build on M.2 Next Generation Form Factor (NGFF) specification for internally mounted computer expansion cards and associated connectors.

This model is conveniently foldable and can fit the following lengths: 42 / 60 / 80mm.

M.2 replaces the mSATA standard, which uses the PCI Express Mini Card physical card layout and connectors. Employing a more flexible physical specification, the M.2 allows different module widths and lengths, and, paired with the availability of more advanced interfacing features, makes the M.2 more suitable than mSATA in general for solid-state storage applications, and particularly in smaller devices such as ultrabooks and tablets.

Specifications:

- Model number: E600

- Interface: M.2 NGFF 2280

- Controller: Silicon Motion SMI2258XT

- Nand flash: TLC

- Capacity: 256GB

- Size: 22*80mm

Performance:

- Read/write Sequential Read/Write (max):550/450MB/s

- IOPS readon Read/Write(max):80000/70000

Power Consumption

- Input voltage 3.3V 5%

- Power consumption(Active) Power consumption(IDLE) 0.3W

Reliability

- M.T.B.F>2,000,000 hours

- ECC Support BCH ECC 72 bits per 1024K

- TRIM Support

- Anti-Shock 1500G(@0.5ms hald sine wave)

Temperature:

- Working temperature 0~70?

- Storage temperature -20~70?

Warranty: 3 years limited factory warranty

Application Desktop, laptop, notebook, industrial, PC Gaming, etc

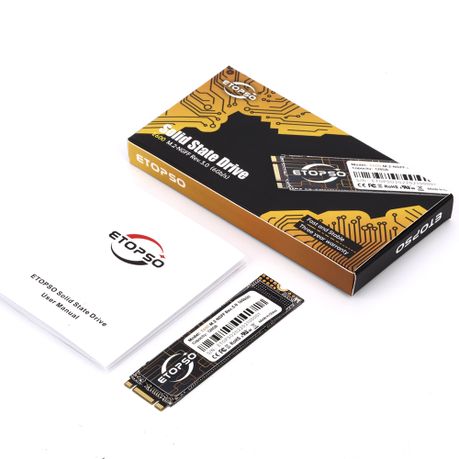

What's in the box

1 x ETOPSO E600 128GB M.2 NGFF 2280 SSD Solid State Drive
