Details
Antenna, Linear, Omni-Directional, 2-Band, 2.4-5GHz, 3.5dB, 50ohm
Product Information
Antenna Type: WiFi
Frequency Min: 4.8GHz
Frequency Max: 5.9GHz
Gain: 4.4dBi
Antenna Mounting: Adhesive
Input Impedance: 50ohm
Antenna Polarisation: Linear
Product Range: 47950ct Range: 47950
Product Overview

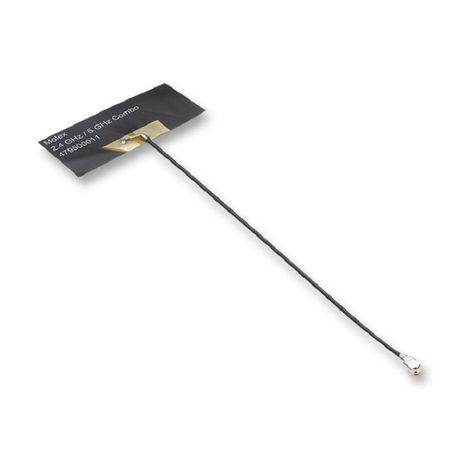

2.4GHz/5GHz Wi-Fi stand-alone flexible antenna
200mm cable length
Omnidirectional radiation
Adhesive mounting
35.90mm x 15.90mm x 0.10mm (L x W x H) size
General
Product Family Antennas
Series 47950
Component Type Stand Alone Antenna with Cable
Mates With 73412-0110 Microcoaxial RF, 50 Ohm
Overview Antennas
Product Literature Order No 987650-5892
Product Name 2.4GHz SMD Stand Alone
Protocol BLE, BT, Thread, Wi-Fi, Wireless Hart, Zigbee
Type Wi-Fi Antenna
UPC 884982682054
Physical
Cable Length 200.00mm
Length 35.90mm
Mounting Style Adhesive
Net Weight 0.800/g
Packaging Type Tray
Polarization Linear
Radiation Pattern Omnidirectional
Thickness 0.10mm
Width 15.90mm
Electrical
Band#1 FEnd (MHz) 2483.5
Band#1 FStart (MHz) 2400
Band#2 FEnd (MHz) 5900
Band#2 FStart (MHz) 4800
Electrical Connectivity Cable
Peak Gain (dBi) 2.6 @ 2.4 GHz, 4.4 @ 5 GHz
Return Loss - S11 (dB) < -10, < -9
Total Efficiency >75% @ 5 GHz, >80% @ 2.4 GHz
What's in the box
1 x Antenna
