Details

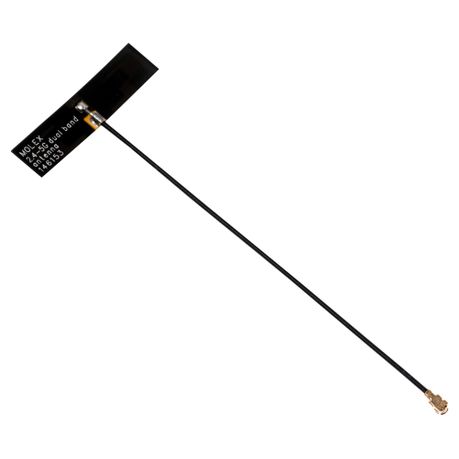

Antenna, WiFi, 4.9 GHz to 5.93 GHz, 4.25 dBi Gain, 50 ohm, Linear Polarisation, Adhesive Mounting
Product Information
Antenna Type: WiFi
Frequency Min: 4.9GHz
Frequency Max: 5.93GHz
Antenna Mounting: Adhesive
Gain: 4.25dBi
Input Impedance: 50ohm
Antenna Polarisation: Linear
Product Range: 146153
General
Product Family Antennas
Series 146153
Component Type Stand Alone Antenna with Cable
Mates With Molex Receptacle 73412-0110 and other alternatives
Overview Antennas
Product Literature Order No 987651-6901
Product Name 2.4/5GHz Balanced Flex Antenna
Protocol BLE, BT, Thread, Wi-Fi, Wireless Hart, Zigbee
Type Wi-Fi Antenna
UPC 889056310000
Physical
Cable Length 50.00mm
Length 34.90mm
Mounting Style Adhesive
Net Weight 0.487/g
Packaging Type PET Film
Polarization Linear
Radiation Pattern Omnidirectional
Thickness 0.10mm
Width 9.00mm
Electrical
Band#1 FEnd (MHz) 2483.5
Band#1 FStart (MHz) 2400
Band#2 FEnd (MHz) 5930
Band#2 FStart (MHz) 4900
Electrical Connectivity Cable
Impedance 50?
Number of Bands 2
Peak Gain (dBi) 3.2 @ 2.4G, 4.25 @ 5G
Return Loss - S11 (dB) < -10
Total Efficiency >78% @2.4G, >79% @ 5G
What's in the box
1 x Antenna
