TP-LINK RE220 - AC750 Dual Band WI-FI Range Extender, 10/100MBPS Ports

AC750 Wi-Fi Range Extender

Boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly

Compatible with 802.11 b/g/n and 802.11ac Wi-Fi devices

Dual-band speeds up to 750Mbps

Miniature size and wall-mounted design make it easy to deploy and move flexibly

Ethernet port allows the Extender to function as a wireless adapter to connect wired devices

Eliminate Wi-Fi Dead Spots Extend High-Speed Wi-Fi Across Your Home

AC750 Wi-Fi Range Extender

Boost Your Wi-Fi to hard-to-reach Areas

Place the RE220 between your wireless router and wireless devices, expanding Wi-Fi coverage while eliminating Wi-Fi dead zones. The dual-band Wi-Fi up to 750 Mbps can not only extend to 32,00 sq. ft. (300m2) with the router, but also make good use of your high ISP speed, ideal for HD video streaming, online gaming, and other bandwidth-intensive tasks.

Stable Dual Band Connection for More Devices

The RE220’s Wireless AC technology creates faster and stronger Wi-Fi connections across your home and extends dual-band Wi-Fi up to 750 Mbps. Dual 2.4 GHz and 5 GHz bands provide Wi-Fi connections to up to 32 devices, allowing you to enjoy a stable and drop-free experience on all your devices.

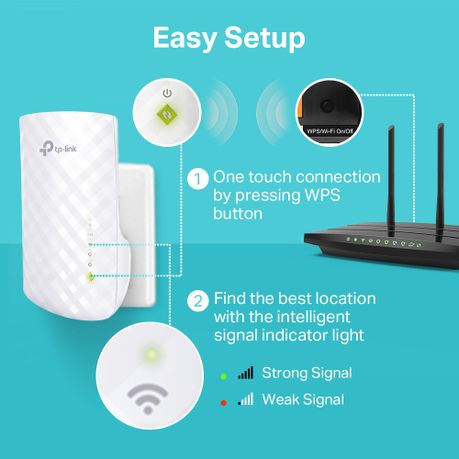

Simple Two-Step Setup

Step 1: Press the WPS button on the router and RE220 to easily connect the extender to the network. Or connect the extender via the Tether app or Web UI if your router doesn’t support WPS.

Step 2: Relocate the extender to a better location for optimal Wi-Fi coverage with the help of the smart signal indicator light.

An Access Point as well as a Wireless Adapter

The Ethernet port of RE220 can easily turn your wired Internet connection into a wireless access point. And it can also function as a wireless adapter to connect wired devices.

High-Speed Mode for Maximized Performance

High-Speed Mode uses one dedicated Wi-Fi band as backhaul and another dedicated Wi-Fi band as an access point to maximize the bandwidth on extender Wi-Fi.

Universal Compatibility

The RE220 is compatible with any of your existing Wi-Fi router or access point, making it easy to expand and strengthen your Wi-Fi network.

Smart Management by Tether App

Set up and manage your Wi-Fi through the TP-Link Tether app on your smartphone (Android, iOS).

Specifications

Hardware Features

Plug Type: EU, UK, US, AU

Standards and Protocols: IEEE802.11ac,IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Interface: 1 x 10/100M Ethernet Port (RJ45)

Button: RE (Range Extender) Button, Reset Button

Power Consumption: About 6.5W

Dimensions ( W x D x H ): 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)

Antenna: 3 x internal

Wireless Features

Frequency: 2.4GHz & 5GHz

Signal Rate:

5GHz: Up to 433Mbps

2.4GHz: Up to 300Mpbs

Reception Sensitivity:

2.4G:

270M: -70dBm@10% PER

130M: -70dBm@10% PER

108M: -73dBm@10% PER

54M: -75dBm@10% PER

11M: -86dBm@8% PER

6M: -92dBm@10% PER

1M: -94dBm@8% PER

5G:

390M: -60dBm@10% PER

29.3M: -83dBm@10% PER

180M: -64dBm@10% PER

13.5M: -87dBm@10% PER

78M: -68dBm@10% PER

6.5M: -90dBm@10% PER

54M: -75dBm@10% PER

6M?-90dBm@10% PER

Transmit Power: < 20 dBm (EIRP)

Wireless Modes: Range Extender

Wireless Functions:

WMM (Wi-Fi Multimedia)

Wireless Statistic

Domain Login Function

Wireless Security:

64/128/152-bit WEP

WPA-PSK / WPA2-PSK

Others:

Certification: CE, FCC, RoHS

System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac OS, NetWare®, UNIX, or Linux.

Environment:

Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

What's in the box

1 x AC750 Wi-Fi Range Extender RE200

1 x Quick Installation Guide
